For gas-tight connection of XD-4 couplings to XD-4 plastic LPG pipe.
Choose the desired lenght in meters Can be used instead of copper LPG pipe with outer diameter Ø8mm. Has the samen internal diameter as 8mm copper. Brand: LPG FITUPC Number: LPG-XD-3 H04Manufacturer code: LPG-XD-4Approval number: E4 67R-010247Inner diameter: Ø6,5mmOuter diameter: Ø10mmPressure class: 67R-01 Class 1 (max. 30 bar)

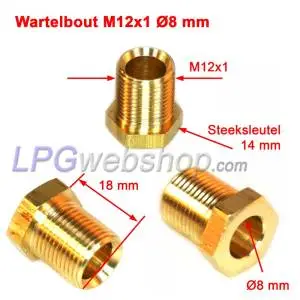

Used in combination with plastic LPG pipe LPG-XD-4 DN 6 (= Ø8 mm Copper) and an LPG part with an M12x1 connection. Brand: LPG FITType: FSF-04 Ø8 mm + Cable glandOutput connection: Ø8mm compression + swivelOuter diameter: Ø8mmSpanner size: 13mmCoupling & Thread: M12x1Material: SteelPressure class: 67R-01 Class 1 (max. 30 bar)
This part is used in combination with plastic LPG Pipe LPG-XD-4 DN 5 on an LPG Tank (4-hole) with electric tank tap. Brand: LPG FITType: FNF-04 + Swivel 1/2" FlareOutput Connection: 5/16UNF - 1/2"-20 SAE 45°Flare Female (12.5mm)Spanner size: 16mmCoupling & Thread: 5/16UNF - 1/2-20 SAE 45°Flare Female (12.5mm)Material: SteelPressure class:...
This part is used in combination with plastic LPG pipe LPG-XD-4 DN 6 and an LPG part with a compression connection. using the pipe can be connected using a union nut and a compression ring. Brand: LPG FITType: FSR-04 Pipe + Oetiker clampOuter diameter: Ø8mmCoupling & Thread: M12x1Output connection: Ø8mm compression + swivelMaterial:...
Used in combination with plastic LPG pipe LPG-XD-4 DN 6 (= Ø8 mm Copper) and an LPG part with an M10x1 connection. Brand: LPG FITType: FBB-C-04 Banjo 90°+ Swivel M10x1Spanner size: 14mmCoupling & Thread: M10x1Material: SteelPressure class: 67R-01 Class 1 (max. 30 bar)
This part is used in combination with plastic LPG pipe LPG-XD-4 with a compression connection. using a swivel and a compression ring, the pipe can be connected at a right angle 90°. Brand: LPG FITType: FSR-04-90 Pipe 90° + Oetiker clampOuter diameter: Ø8mmOutput connection: Ø8mm compression + swivelCoupling & Thread:...
Plastic LPG pipe has many advantages compared to a copper pipe. That is why for the last 10-15 years almost only plastic LPG pipe has been used for LPG installation. This product is used in combination with end fittings (by choice). Choose your terminal couplings:- 2x Straight Cone-Nut M12- 2x Flare Nut- 1x Straight Cone Nut M12 + 1x Flare Nut-...
