Fittings & Adapters
Application: Vapor gas applications: Adapter coupling from Ø8mm compression coupling to Ø8mm gas hose for low pressure (max. 10 bar) . Brand: GOKOuter diameter: Ø8mmOutput connection: Ø8mm compression + swivelInput connection: Ø8mm Hose barbMaterial: BrassPressure class: EN16436 Class 2 (max. 10 bar)
Symmetrical connection nipple with 2x M10x1 male thread and conical sealing surfaces on the ends.Application: For a direct connection of, for example, a gas valve to an evaporator, each with M10x1 female thread. Input connection: M10x1 ExternalOutput connection: M10x1 ExternalInner diameter: Ø4mmSpanner size: 13mmCoupling & Thread: M10x1Material: Brass
Straight coupling with male thread G 1/4" NPTF x 8mm Compression connectionWidely used on for example: Entrance of CAVAGNA 758TW Pressure regulator and all kinds of other pipes. Inner diameter: Ø6mmOutput connection: Ø8mm compression + swivelInput connection: 1/4" NPT Male (±13mm)Spanner size: 17mm
Reducing valve with M10x1 internal thread and M12x1 external thread with conical sealing face on the end Manufacturer code: RE-0010Inner diameter: Ø5mmOutput connection: M12x1 ExternalInput connection: M10x1 InternalSpanner size: 14mmMaterial: Brass
Fits on an LPG pipe Ø8mm on the one hand and Ø8mm gas hose on the other hand and must be used in combination with a slim clamp for a good seal. Brand: GOKOuter diameter: Ø8mmOutput connection: Ø8mm compression + swivelInput connection: Ø8mm Hose barbMaterial: BrassPressure class: EN16436 Class 2 (max. 10 bar)
Straight coupling with male thread G 3/8" NPTF x 8mm Compression connectionWidely used on for example: Output of CAVAGNA 758TW Pressure regulator Inner diameter: Ø6mmOutput connection: Ø8mm compression + swivelInput connection: 3/8" NPT Male (±16mm)Spanner size: 19mmMaterial: Brass
To connect an 8mm copper LPG pipe (in combination with a compression fitting) to an inlet / outlet of an evaporator or gas valve with 1/4" NPT thread. Inner diameter: Ø6mmOutput Connection: 5/16"UNF - 1/2"-20 SAE 45°Flare Male (12.5mm)Input connection: 1/4" NPT Male (±13mm)Spanner size: 14mmMaterial: Brass
With this coupling piece you can interconnect Ø8mm M12x1 x Ø6mm M10x1 pipes. See image for further illustration.With 2x swivel and 2 x compression ring Input connection: Ø8mm compression + swivelOutput connection: Ø6mm compression + swivelMaterial: BrassPressure class: Up to 30 bar
With this coupling piece you can interconnect Ø8mm M12x1 x Ø10mm M14x1 pipes. See image for further illustration.With 2x swivel and 2 x compression ring Input connection: Ø8mm compression + swivelOutput connection: Ø10mm compression + swivelMaterial: BrassPressure class: Up to 30 bar
A direct connection between gas valve (Valtek Type 06) and an IMPCO Evaporator. Inlet / outlet of evaporator and gas valve with 1/4" NPTF thread. Inner diameter: Ø8mmOutput connection: 1/4" NPT Male (±13mm)Input connection: 1/4" NPT Male (±13mm)Spanner size: 14mmMaterial: Brass
A connection between gas valve (Valtek Type 06) and an IMPCO Evaporator. Inlet / outlet of evaporator and gas valve with 1/4" NPTF thread. Inner diameter: Ø8mmOutput connection: 1/4" NPT Male (±13mm)Input connection: 1/4" NPT Male (±13mm)Spanner size: 14mmMaterial: Brass
To connect an 8mm copper LPG pipe (in combination with a compression fitting) to an inlet / outlet of an evaporator or gas valve with 1/4" NPT thread. Inner diameter: Ø6mmOutput Connection: 5/16"UNF - 1/2"-20 SAE 45°Flare Male (12.5mm)Input connection: 1/4" NPT Male (±13mm)Spanner size: 14mmMaterial: Brass

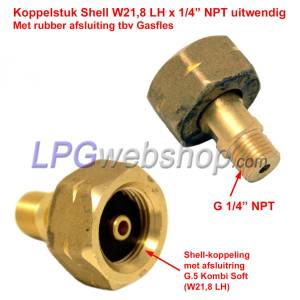

Straight coupling with male thread G 1/4" NPTF x Shell G.5 W21.8 LHOften used on, for example: Gas bottle with Shell connection, Icm quick coupling with 1/4" NPT female thread Inner diameter: Ø4mmOutput connection: 1/4" NPT Male (±13mm)Input Connector: SHELL-Kombi Soft G.5 (W21.8 x 1/14 lh)Spanner size: 30mmMaterial: Brass
Can be combined with:- Copper LPG pipe Ø8mm- Plastic LPG pipe with Ø8mm connections (KF-0002, XD-4, XD-5)Brand: GOKInner diameter: Ø8mmOutput connection: Ø8mm compression + swivelInput connection: Ø8mm compression + swivelSpanner size: 17mmMaterial: BrassPressure class: Up to 30 bar
Hansun Quick Coupling Male x 1/4” NPT FemaleWith non-return valve. When disconnected, the coupling closes.Often used on, for example: Gas bottle with Shell connection, Heftruk and in combination with quick coupling Female and Coupling piece Shell G.5 Kombi-Soft W21.8 LH x 1/4” NPT external. Outer diameter: Ø14mmOutput connection:...
Hansun Quick Coupling Female x 1/4” NPT femaleWith non-return valve. When disconnected, the coupling closes.Often used on, for example: Gas bottle with Shell connection, Lift pressure and in combination with quick coupling Male and Coupling piece Shell G.5 Kombi-Soft W21.8 LH x 1/4” NPT external. Outer diameter: Ø27mmOutput...
Often used in combination with, for example:- Gas bottle with shell connection- On a forklift truck with a gas bottleWhen disconnected, the quick couplings close.Choose the optional coupling pieces to be able to connect with a Shell connection (gas bottle) on the one hand and an 8mm compression (8mm pipe) on the other. Outer diameter:...
Often used when connecting the outputs of two LPG Tanks. Serves to prevent the LPG from flowing back from one tank to the other tank. RDW requirement. Approval number: E3 67R-0158470Inner diameter: Ø8mmOutput connection: Ø8mm compression + swivelInput connection: Ø8mm compression + swivelSpanner size: 19mmMaterial:...
To be able to connect the outputs of 2 or optionally 3 LPG tanks in a safely way and in accordance with RDW regulations. Brand: PrinceManufacturer code: 190/37002Type number: 190/37002Approval number: E4-67R-010134 - E13-67R-01027300Material: SteelPressure class: 67R-01 Class 1 (max. 30 bar)Output connection: Ø8mm compression + swivelInput...
