IMPCO Mixer Accessories - Couplings - Air Filter - Adapters
Used for gas connection to IMPCO evaporators such as the Model E on the Mixer 425.Brand: IMPCOType number: F4-1Material: PlasticOutput Connection: 1" NPT MaleInput Connection: Ø1" (25.5mm) Barb

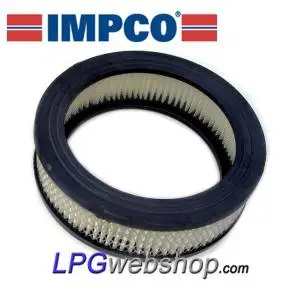

Air filter with an outer diameter of 25 cm, aluminum grille and rubber seal. Used in combination with the air filter cover type C1-4 on IMPCO Mixers model 300A (CA300AM-1 and CA300AM-50-2) Brand: IMPCOType: IMPCO Air Filter F1-1Dimensions: Ø 25 cm, Height 7 cmWeight: 0.2kg

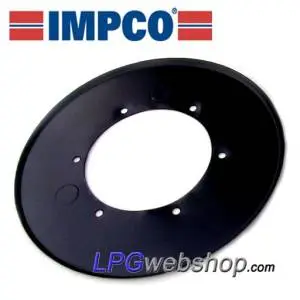

For Fixing the Air Filter with an outer diameter of 25 cm on IMPCO Mixers model 300A (CA300AM-1 and CA300AM-50-2). Brand: IMPCOType: IMPCO Air Filter Cover C1-4Dimensions: diameter 25 cmWeight: 0.3 kgNote: Only suitable for IMPCO system
This type of gas valve is the engine vacuum is activated (opened) and also filters the LPG before it goes to the evaporator. When the engine stalls, the engine vacuum is lost and the gas shut-off valve closes automatically. Type: IMPCO VFF30 LPG FilterDimensions: Ø104 mm x Height: 119 mmEntry: 1/4" NPT (Rear)Outlet: 1/4" NPT (Top)max. Pressure: 21 bar
To facilitate gas starting. Connect to the Test Port of your IMPCO evaporator and Mixer or inlet manifoold. Connect using a Ø6mm gas hose to the nozzle in the inlet path. Briefly actuate with 12V before starting. Type: IMPCO SVDimensions: Ø28 mm x Height: 59 mmWeight: 0.2kgInput: 1/8" NPT MaleOutlet: Ø6.5 mm hose barb
