IMPCO Adapters for Mixers in different connection diameters - Arm extensions - Extension rings
Use this adapter (mounting ring) if you want to mount an IMPCO "arm" on a carburetor (4-barrel) with a connection diameter of Ø130 mm for placing a 300A mixer next to the carburetor. Type: IMPCO A1-61Dimensions: ID Ø130 mm x Height: 25 mm, outer diameter: Ø145 mmWeight: 0.2kgMounting: On a carburetor with connection diameter 130 mm. Material: Aluminium
Use this adapter if you want to mount an IMPCO "arm" on a carburetor with a connection diameter of Ø78 mm for placing a 300A mixer next to the carburetor. Type: IMPCO A1-54Dimensions: ID Ø78 mm x Height: 16 mm, outer diameter: Ø145 mmWeight: 0.2kgMounting: On a carburetor with connection diameter 78 mm.Position: On top of the carburetorMaterial: Aluminium
Use this adapter if you want to extend an IMPCO "arm" and give it a downward angle. For placing a 300A mixer next to the carburetor. To be used in combination with the other IMPCO Arm parts. Type: IMPCO A1-59 (911106)Approval Number: N/ADimensions: Width: 122 mm x Length: ±35 mmWeight: 0.2kgMaterial: Aluminium
Use this adapter if you want to mount an IMPCO "arm" on a carburetor with a connection diameter of Ø67 mm for placing a 300A mixer next to the carburetor. Type: IMPCO A1-55Approval Number: N/ADimensions: ID Ø67 mm x Height: 16 mm,Outer diameter: Ø145 mmWeight: 0.2kgMounting: On a carburetor with connection diameter 67...

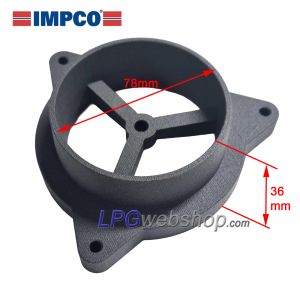

Use this adapter if you want to mount an IMPCO mixer type 300A on top of a carburetor with a connection diameter of Ø67 mm Type: IMPCO A1-6Approval Number: N/ADimensions: ID Ø78 mm x Height: 36 mmWeight: 0.2kgMounting: On a carburetor with connection diameter 78 mm.Position: Directly on top of the carburetorMaterial: Aluminium
Use this adapter if you want to mount an IMPCO mixer type 300A on top of a carburetor with a connection diameter of Ø67 mm Type: IMPCO A1-39Approval Number: N/ADimensions: ID Ø67 mm x Height: 41 mmWeight: 0.2kgMounting: On a carburetor with connection diameter 67 mm.Position: Directly on top of the carburetorMaterial: Aluminium
Use this adapter if you want to place an IMPCO 300A Mixer next to the carburetor using an "arm". To be used in combination with the other IMPCO Arm parts. Type: IMPCO A1-63Approval Number: N/ADimensions: Width: 122mm x Length: 200mmWeight: 0.4kgMaterial: Aluminium

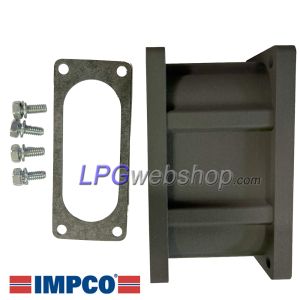

Use this adapter if you want to extend an IMPCO "arm" by 75 mm. For placing a 300A mixer next to the carburetor. To be used in combination with the other IMPCO Arm parts. Type: IMPCO A1-60 (910807)Approval Number: N/ADimensions: Width: 122mm x Length: 75mmWeight: 0.2kgMaterial: Aluminium
Use this adapter if you want to mount an IMPCO mixer of type 300A on top of a 4-barrel carburetor with a connection diameter of Ø130mm Type: IMPCO A1-16-2Approval Number: N/ADimensions: ID Ø130 mm x Height: 69 mmWeight: 0.32 kg.Material: Aluminium
Use this Hood if you want to mount an IMPCO "arm" on a carburetor for placing a 300A mixer next to the carburetor. Use a matching adapter to connect this Hood on top of the carburetor. Type: IMPCO A1-57 (910827)Approval Number: N/ADimensions: Ø145 mm x Height: 45 mmWeight: 0.4 kg Material: Aluminium
