- Copper LPG Pipe 6mm / 8mm
- Thermoplastic LPG Pipe FARO (6mm/8mm) / LPG-FIT (XD-3 / XD-4 / XD-5)
Subcategories
Available in external diameter ø6mm / ø8mm

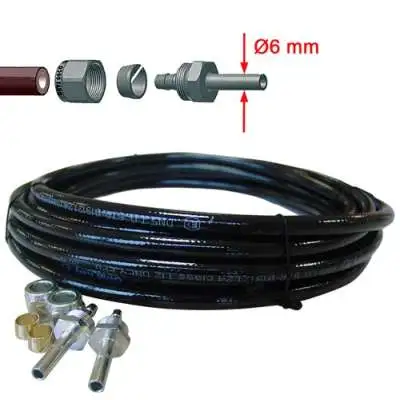

Thermoplastic FARO (6mm) Flexible gas pipe as LPG pipe in your car
Thermoplastic FARO (8mm) Flexible gas pipe as LPG pipe in your car or for your camper, caravan or food truck. Suitable for liquid LPG and vapor gas (high and low gas pressure). Available with various couplings.
Straight coupling with male thread G 3/8" NPTF x 8mm Compression connectionWidely used on for example: Output of CAVAGNA 758TW Pressure regulator Inner diameter: Ø6mmOutput connection: Ø8mm compression + swivelInput connection: 3/8" NPT Male (±16mm)Spanner size: 19mmMaterial: Brass
With this connector you can interconnect 2 x 6mm (copper) pipes.Sealing with 6mm compression ring and swivel (M10x1) Inner diameter: Ø6mmOutput connection: Ø6mm compression + swivelInput connection: Ø6mm compression + SwivelSpanner size: 13mmMaterial: BrassPressure class: Up to 30 bar
With this connector you can interconnect 2 x 8mm (copper) pipes.Sealing with 6mm compression ring and swivel (M12x1) Inner diameter: Ø8mmOutput connection: Ø8mm compression + swivelInput connection: Ø8mm compression + SwivelSpanner size: 14mmMaterial: BrassPressure class: Up to 30 bar
With this T-piece you can connect 3 x 8mm (copper) pipes. Inner diameter: Ø8mmOutput connection: Ø8mm compression + swivelInput connection: Ø8mm compression + swivelSpanner size: 14mmMaterial: BrassPressure class: Up to 30 bar
Application: Widely used as for example:- Supply line LPG installation in cars with high power- Vapor gas pipe in Campers and Caravans Inner diameter: Ø6.5mmOuter diameter: Ø8mmPressure class: 67R-01 Class 1 (max. 30 bar)
For LPG Tanks with Multivale 6mm connection (outlet) and gas ash whistles and evaporators etc with 6mm connection(M10x1) Manufacturer code: KF-0001Approval No: E8 67R-018220Input connection: Ø6mm compression + SwivelOutput connection: Ø6mm compression + swivelInner diameter: Ø5mmOuter diameter: Ø9.7mmPressure class:...
Plastic LPG pipe has many advantages compared to a copper pipe. That is why for the last 10-15 years almost only plastic LPG pipe has been used for LPG installation. This product is used in combination with end fittings (by choice). Choose your terminal couplings:- 2x Straight Cone-Nut M12- 2x Flare Nut- 1x Straight Cone Nut M12 + 1x Flare Nut-...
Choose the desired couplings Can be used instead of copper LPG pipe with outer diameter Ø8mm Manufacturer code: KF-0002Approval number: E7 67R-0100951Inner diameter: Ø6.5mmOuter diameter: Ø12.2mmInput connection: Ø8mmOutput connection: Ø8mmPressure class: 67R-01 Class 1 (max. 30 bar)
Application: Widely used as for example:- Supply line for LPG installation in cars up to approximately 180 hp Inner diameter: Ø4mmOuter diameter: Ø6mmPressure class: 67R-01 Class 1 (max. 30 bar)
Application: Widely used as for example:- Supply line LPG installation in cars with high power- Vapor gas pipe in Campers and Caravans Inner diameter: Ø6.5mmOuter diameter: Ø8mmPressure class: 67R-01 Class 1 (max. 30 bar)
Application: Widely used as for example:- Supply line LPG installation in cars with high power- Vapor gas pipe in Campers and Caravans Inner diameter: Ø6.5mmOuter diameter: Ø8mmPressure class: 67R-01 Class 1 (max. 30 bar)
