Couplings / Tees and Adapter pieces for vapor applications in Motorhome, Caravan and Food Truck and for leisure purposes
Fits a Ø8mm gas hose and must be used in conjunction with a hose clamp to ensure a tight seal. Inner diameter: Ø5mmOuter diameter: Ø8mmOutlet connection: Ø8mm Hose barbInput connection: Ø8mm Hose BarbMaterial: SteelPressure class: EN16436 Class 2 (max. 10 bar)
Application: Vapor gas applications: Adapter coupling from Ø8mm compression coupling to Ø8mm gas hose for low pressure (max. 10 bar) . Brand: GOKOuter diameter: Ø8mmOutput connection: Ø8mm compression + swivelInput connection: Ø8mm Hose barbMaterial: BrassPressure class: EN16436 Class 2 (max. 10 bar)
This stop plug is intended to be able to cap / seal an 8mm compression fitting.Often used on, for example: Reca quick-closing valves Brand: GOKMaterial: Brass
Straight coupling with male thread G 1/4" NPTF x 8mm Compression connectionWidely used on for example: Entrance of CAVAGNA 758TW Pressure regulator and all kinds of other pipes. Inner diameter: Ø6mmOutput connection: Ø8mm compression + swivelInput connection: 1/4" NPT Male (±13mm)Spanner size: 17mm
Fits on an LPG pipe Ø8mm on the one hand and Ø8mm gas hose on the other hand and must be used in combination with a slim clamp for a good seal. Brand: GOKOuter diameter: Ø8mmOutput connection: Ø8mm compression + swivelInput connection: Ø8mm Hose barbMaterial: BrassPressure class: EN16436 Class 2 (max. 10 bar)
Straight coupling with male thread G 3/8" NPTF x 8mm Compression connectionWidely used on for example: Output of CAVAGNA 758TW Pressure regulator Inner diameter: Ø6mmOutput connection: Ø8mm compression + swivelInput connection: 3/8" NPT Male (±16mm)Spanner size: 19mmMaterial: Brass
With this connector you can interconnect 2 x 8mm (copper) pipes.Sealing with 6mm compression ring and swivel (M12x1) Inner diameter: Ø8mmOutput connection: Ø8mm compression + swivelInput connection: Ø8mm compression + SwivelSpanner size: 14mmMaterial: BrassPressure class: Up to 30 bar
With this coupling piece you can interconnect Ø8mm M12x1 x Ø10mm M14x1 pipes. See image for further illustration.With 2x swivel and 2 x compression ring Input connection: Ø8mm compression + swivelOutput connection: Ø10mm compression + swivelMaterial: BrassPressure class: Up to 30 bar
Straight coupling with male thread G 1/4" NPTF x Shell G.5 W21.8 LHOften used on, for example: Gas bottle with Shell connection, Icm quick coupling with 1/4" NPT female thread Inner diameter: Ø4mmOutput connection: 1/4" NPT Male (±13mm)Input Connector: SHELL-Kombi Soft G.5 (W21.8 x 1/14 lh)Spanner size: 30mmMaterial: Brass
Can be used, for example, to connect 3x LPG pipes (copper or thermoplastic). Inner diameter: Ø6mmCoupling: 5/16" UNF FlareMaterial: BrassPressure class: Up to 30 bar
Can be combined with:- Copper LPG pipe Ø8mm- Plastic LPG pipe with Ø8mm connections (KF-0002, XD-4, XD-5)Brand: GOKInner diameter: Ø8mmOutput connection: Ø8mm compression + swivelInput connection: Ø8mm compression + swivelSpanner size: 17mmMaterial: BrassPressure class: Up to 30 bar
With this T-piece you can connect 3 x 8mm (copper) pipes. Inner diameter: Ø8mmOutput connection: Ø8mm compression + swivelInput connection: Ø8mm compression + swivelSpanner size: 14mmMaterial: BrassPressure class: Up to 30 bar
Used to connect a Ø8 mm LPG Pipe (Copper / Plastic) to a Gas bottle with a SHELL connection (left-hand thread) (W21.8 x 1/14 LH) Inner diameter: Ø4mmOutput connection: Ø8mm compression + swivelInput Connector: SHELL-Kombi Soft G.5 (W21.8 x 1/14 lh)Spanner size: 17mmMaterial: Brass
Application: Used in combination with plastic LPG pipe Type FARO 8mm / Transfer Oil 1842 (= Ø8mm Copper), a Ø8mm compression ring (compression barrel) and a swivel Ø8mm to seal a connection. (NOT SUITABLE FOR LPG-FIT PLASTIC PIPE)
Makes it possible to connect Ø8mm LPG-Pipe to a 1/2" UNF filling connection and / or the inlet of a 4-hole LPG-Tank (on elbow) Inner diameter: Ø6mmSpanner size: 22mmOutput connection: Ø8mm compression + swivelInput Connector: 1/2UNF - 3/4-16 SAE 45°Flare Female (19mm)
This adapter is intended for gas bottles with a SHELL connection WITHOUT rubber seal (type G.5). With this adapter it is possible to connect components (such as a pressure regulator or filter) with G.12. Inner diameter: Ø7mmOutput Connector: SHELL Male G.12 (W21.8 x 1/14 lh)Input Connector: SHELL-Kombi Soft G.5 (W21.8 x 1/14 lh)Spanner...

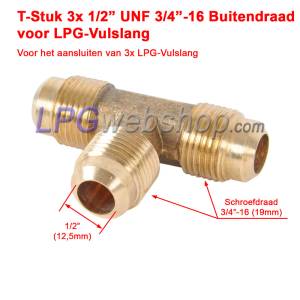

Can be used to fill 2x LPG tanks / Gas bottles at the same time. Inner diameter: Ø10mmCoupling & Thread: 1/2UNF - 3/4-16 SAE 45°Flare Male (19mm)Output Connection: 1/2"UNF - 3/4"-16 SAE 45°Flare Male (19mm)Input Connector: 1/2UNF - 3/4-16 SAE 45°Flare Male (19mm)Material: BrassPressure class: Up to 30 bar

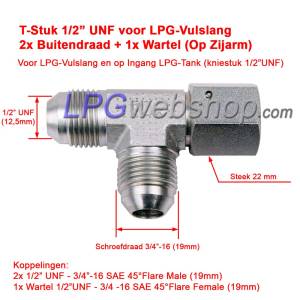

T-Piece with 3x 1/2" UNF Coupling: 2x External thread + 1x Swivel with internal thread on side arm.Can be used to fill 2x LPG tanks / Gas bottles at the same time. Inner diameter: Ø10mmSpanner size: 22mmOutput Connection: 1/2"UNF - 3/4"-16 SAE 45°Flare Female (19mm)Input Connector: 1/2UNF - 3/4-16 SAE 45°Flare Male (19mm)Material:...
T-Piece with 3x 1/2" UNF Coupling: 2x Male thread + 1x Swivel with female thread On Middle Leg.Can be used to fill 2x LPG tanks / Gas bottles at the same time. Inner diameter: Ø10mmSpanner size: 22mmOutput Connection: 1/2"UNF - 3/4"-16 SAE 45°Flare Female (19mm)Input Connector: 1/2UNF - 3/4-16 SAE 45°Flare Male (19mm)Material:...
Often used when connecting the outputs of two LPG Tanks. Serves to prevent the LPG from flowing back from one tank to the other tank. RDW requirement. Approval number: E3 67R-0158470Inner diameter: Ø8mmOutput connection: Ø8mm compression + swivelInput connection: Ø8mm compression + swivelSpanner size: 19mmMaterial:...
With this T-piece you can connect 2 gas bottles at the same time to your Pressure Regulator or to High Pressure Gas Filter with a single M20x1.5 connection on the input. Brand: GOKOutput connection: M20 x 1.5 rh Gland + Sealing ringInput connection: M20 x 1.5 rh Male threadSpanner size: 23mmMaterial: BrassPressure class: Up to 25 bar
