Lektron LSS230 Safety Switch Relay

Model LSS230

Condition New

For a Classic LPG system (car with carburetor)
This safety relay (Safety Switch) is used to automatically close the gas shut-off valves when the engine stops. (Security requirement)

More details

IN STOCK

Send to a friend
Send to a friend

Lektron LSS230 Safety Switch Relay
For a Classic LPG system (car with carburetor)
This safety relay (Safety Switch) is used to automatically close the gas shut-off valves when the engine stops. (Security requirement)

Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

Data sheet

Right of Withdrawal	WARNING! The right of withdrawal does not apply to electronic components. Returns or exchanges are NOT possible.
Related Products	See bottom of this page
Shipping Cost	Calculated at Checkout

More info

Lektron LSS230 Safety Switch Relay

Also called Induction relay or Safety Relay.

This relay serves as a safety relay, which is only energized when a pulse (from the ignition coil) is present.

The gas system only works in this way when the engine is running. If the engine stalls, the gas shutoff valves will also close afterwards.

IMPORTANT:

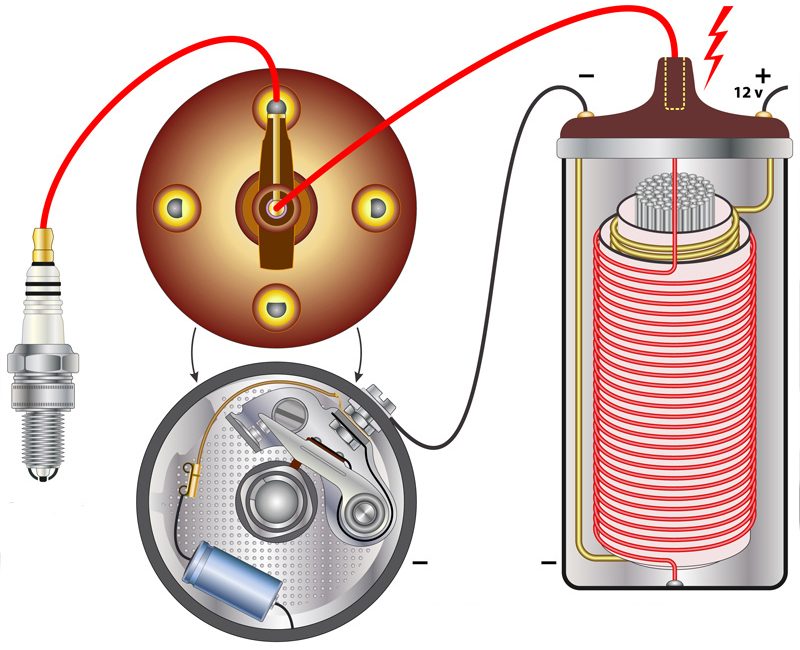

Take the pulse signal from the low voltage side of the ignition coil (-1). That is the signal that comes from the contact points or the electronic control of the ignition coil. Also called the Primary Coil Driver.

DO NOT use the high voltage wires (spark plug wires) as a pulse signal. This is sometimes used by wrapping a wire around and connecting it to the relay. This can cause a lot of noise and interference and peak voltages, causing the relay to behave erratically and fail more quickly

Bobine aansluitschema
