AEB 551 LPG Safety relay with adjustable choke time

Model AEB551

Condition New

For a Classic LPG system (car with carburetor)
This safety relay (Safety Switch) is used to automatically close the gas shut-off valves when the engine stops. (Security requirement)

More details

IN STOCK

Send to a friend
Send to a friend

AEB 551 LPG Safety relay with adjustable choke time
For a Classic LPG system (car with carburetor)
This safety relay (Safety Switch) is used to automatically close the gas shut-off valves when the engine stops. (Security requirement)
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

Data sheet

Right of Withdrawal	WARNING! The right of withdrawal does not apply to electronic components. Returns or exchanges are NOT possible.
Downloads	Manuals and Documentation - See bottom of this page.
Related Products	See bottom of this page
Shipping Cost	Calculated at Checkout

More info

AEB 551 LPG Safety relay with adjustable choke time

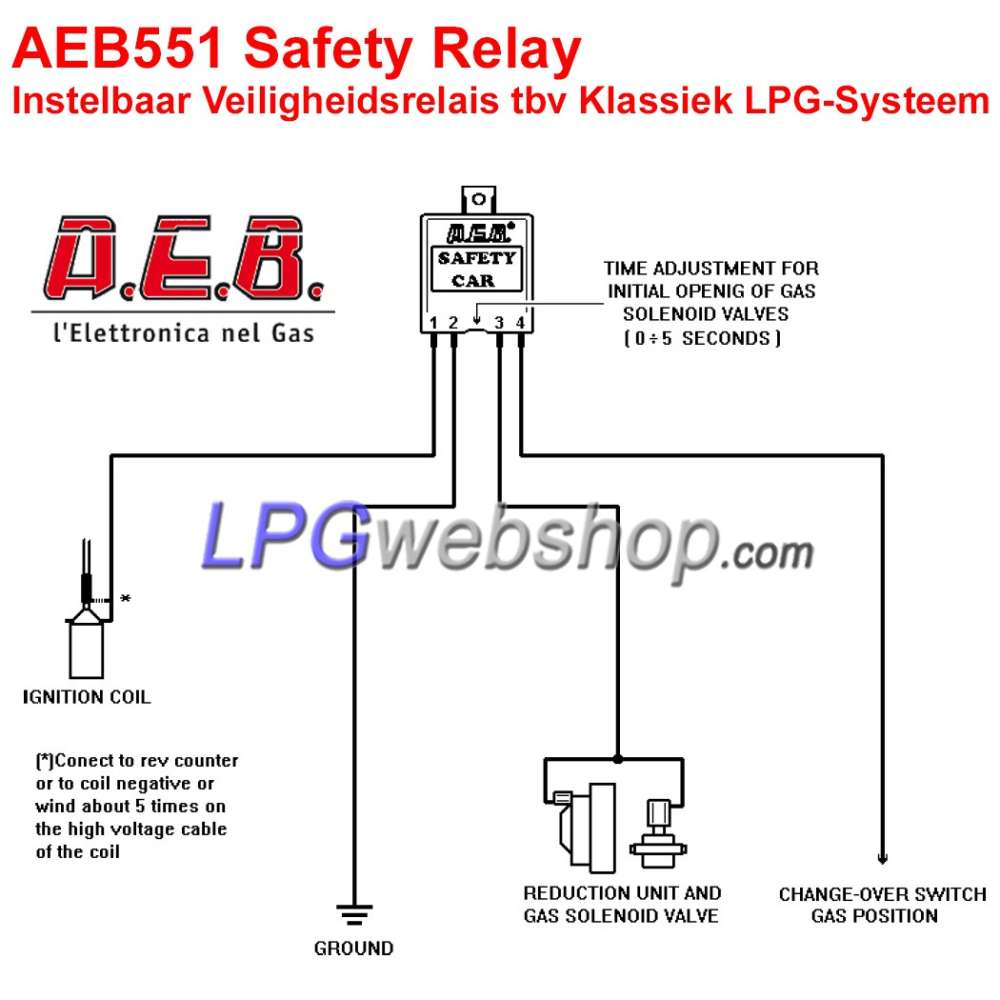

Manual with connection diagram is included.

Safety Relay with Adjustable choke time.

IMPORTANT:

Take the pulse signal from the low voltage side of the ignition coil (-1). That is the signal that comes from the contact points or the electronic control of the ignition coil. Also called the Primary Coil Driver.

DO NOT use the high voltage wires (spark plug wires) as a pulse signal. This is sometimes used by wrapping a wire around and connecting it to the relay. This can cause a lot of noise and interference and peak voltages, causing the relay to behave erratically and fail more quickly.
