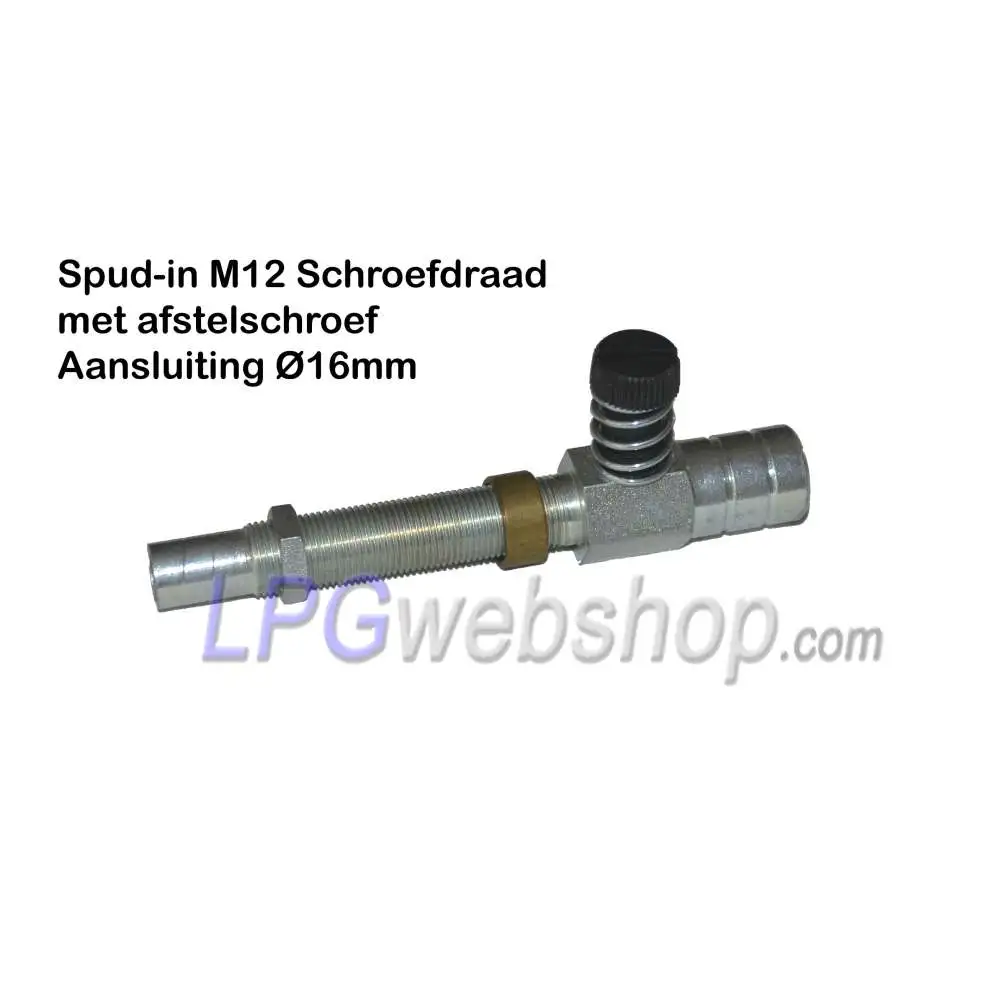

Spud-in Gas Mixer M12 thread with adjustment screw and connection Ø16mm View larger

Spud-in Gas Mixer M12 thread with adjustment screw and connection Ø16mm

305003500

New

Spud-in Gas Mixer M12 thread with adjustment screw and connection Ø16mm



For traditional LPG systems when a gas mixer is not possible or available.

More details

Beoordelingen en recensies

Er is nog geen recensie geplaatst

Schrijf een recensie

9,68 €

More info

Spud-in Gas Mixer M12 thread with adjustment screw and connection Ø16mm



For traditional LPG systems when a gas mixer is not possible or available.

Place the spud-in somewhere in the intake path downstream the air filter until the carburettor, preferably as close as possible to the carburettor or in the carburettor itself, but still upstream of the throttle.

Important: Do not place in the intake manifold (downstream the carburettor / throttlebody. There the vacuum is too strong, so that a lot of gas is drawn in.


Place the spud-in in such a way that the end part points out in a part where the airflow velocity is highest. For example, in the middle of a pipe and where possible where the air passage is narrowed (venturi).

This generates the best suction signal, which can result in a good gas / air mixture and the evaporator can respond well to the suction signal and supply the correct amount of gas.
