Direct Filling Adapter W21.8 x 1/2" UNF - Connect directly on knee piece LPG Tank / Gas Bottle

Direct Filling Adapter W21.8 x 1/2" UNF - Connect directly on knee piece LPG Tank / Gas Bottle

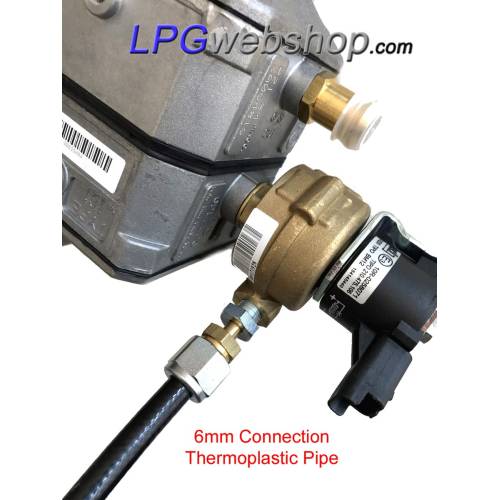

This adapter fits directly on the 80% filling valve (on elbow) of, for example, a 4-hole gas bottle or vapor tank or a gas bottle with a MultiValve (see examples). This adapter has a 3/4"-16 thread (±19mm) which allows it to be screwed directly onto the elbow of the 80% fill valve (instead of a fill hose).

Total Length: 52mm


Inner diameter: Ø12mm
Outer diameter: Ø26mm
Spanner size: 27mm
Coupling & Thread: W21.8mm
Output Connection: 1/2"UNF - 3/4"-16 SAE 45°Flare Female (19mm)
Input Connection: W21.8mm Internal
Material: Brass
Pressure class: Up to 30 bar


Equipped with internal W21.8 thread for connecting foreign filling adapters (with W21.8 thread). Exclusive Fill Nipple for specific countries: Bayonet Nipple, ACME Nipple, Disc Nipple. (See related products below)


Additional Abroad filling nipples:

- Bayonet nipple: Used in Great Britain, Norway, Netherlands

- EURO Connector: Used in Spain and Portugal

- ACME-Nippel: Used in Belgium, Germany, Luxembourg, Austria, Switzerland (North)

- Disc-Nipple: Used in Italy, France, Czech Republic, Slovakia, Hungary, Poland, Austria, Croatia, Serbia, Bosnia, Greece, Turkey, Switzerland (South)


Where can I refill?

In the Netherlands, gas bottles at the pump may not be filled directly onto the bottle.

For this purpose, a gas bottle must be fitted with an 80% filling limiter, be properly fixed in the vehicle and be fitted with an external filling connection.

Click on the following link for an ANWB list of approved filling stations ANWB Filling Stations.
Please note that in some countries (Italy and a number of former Eastern Bloc countries) refueling with LPG is not allowed. This should only be done by pump station personnel. Find out about the rules of each country where you want to refuel.

Note: Filling gas bottles is only allowed at and by authorized filling stations
