LPG Vapour Gas Pressure Reducer Regulator 30mbar - 5kg/h

LPG Vapour Gas Pressure Reducer Regulator 30mbar - 5kg/h

Type: 758TW

Application:

Pressure regulation down to 30mbar with a maximum capacity of 5kg/h

- Only suitable for vapour gas (LPG). NOT suitable for Liquid LPG!

Connections:

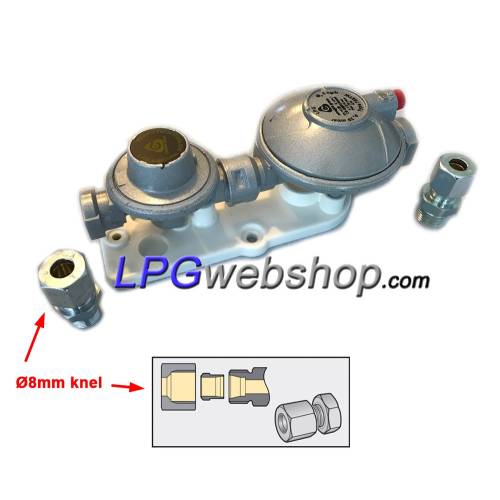

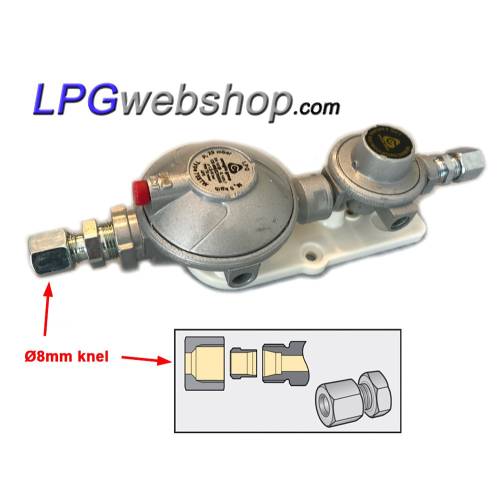

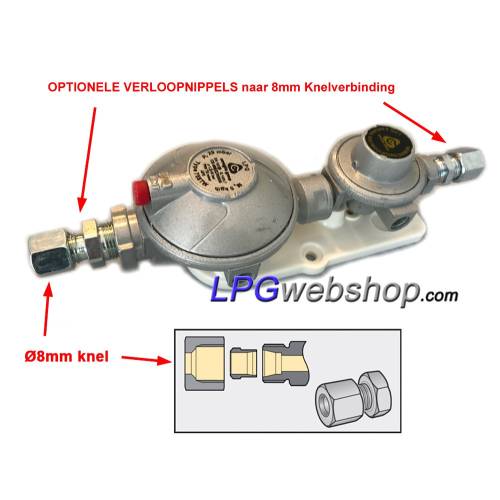

Including connectors to 8mm (as image) for inlet and uitlet. Use gas tape for fixing the couplings gastight.

8mm connections suitable for 8mm copper pipe or 8mm thermoplastic hose;

WARNING:

Pay good attention to the flow direction indicated with an arrow on the product.

Tank side: (Inlet) connect to the small side

Gas withdrawal: OUT, connect to the large side
