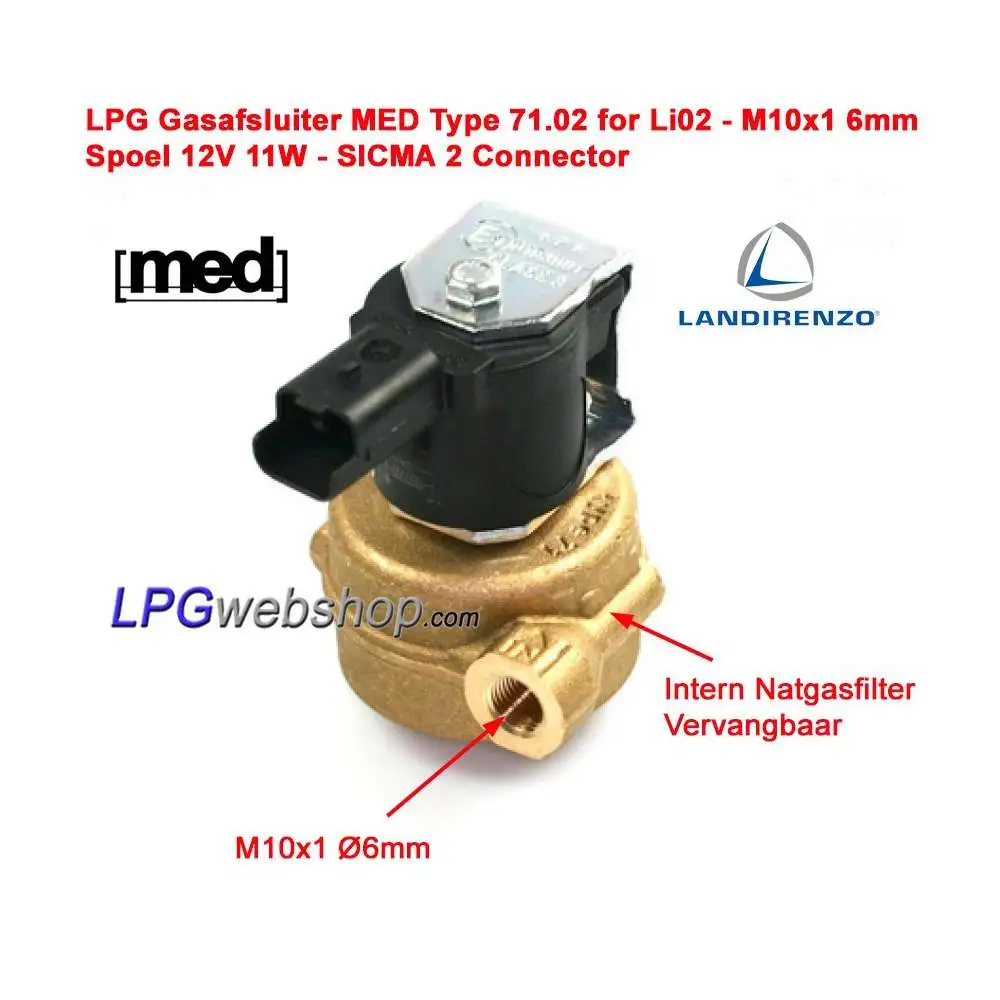

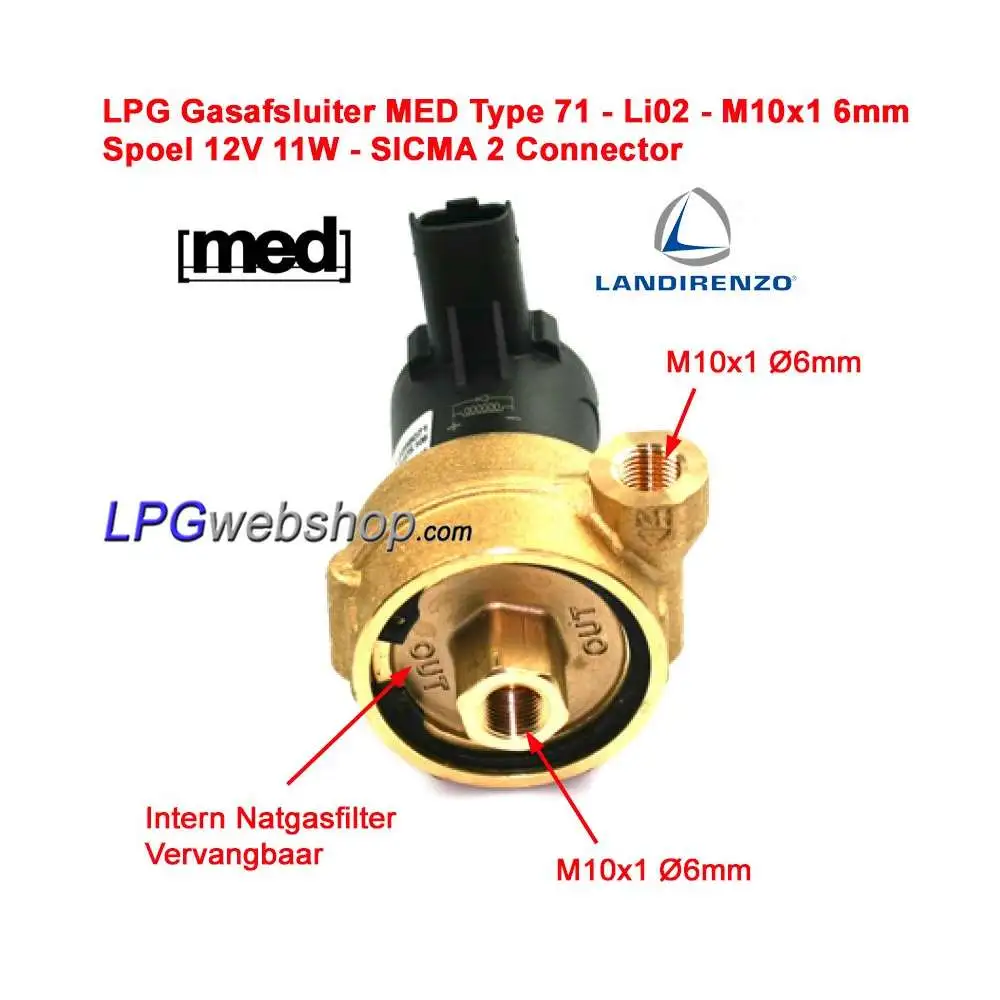

LPG shut off Valve MED 71.12 - 6mm - For Landi Renzo Li02 Reducer

LPG shut off Valve MED 71.12 - 6mm - For Landi Renzo Li02 Reducer

Landi Renzo MED LPG gas valve with integrated and replaceable wet gas filter (for filtering eg sand and iron particles).

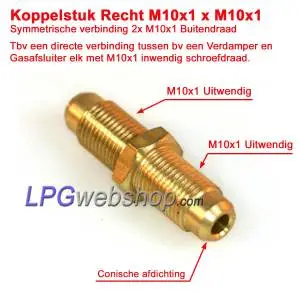

This type is suitable for indirect and direct mounting on the input of, among others, a Landi Renzo Li02 LPG evaporator with LPG input with internal M10x1. Icm 6mm LPG Pipe. Direct mounting in combination with a coupling piece 2x M10x1.


Brand: Landi Renzo
Type number: MED 71.12
Approval number: E3 10R-036344
Inner diameter: Ø3mm
Output connection: M10x1 Internal
Input connection: Ø6mm compression - (M10x1) internal thread
Spanner size: 19mm
Electrical connection: SICMA Connector 2 Pole
Electrical Specifications: 12 V - 11 Watt
Material: Brass
Pressure class: 67R-01 Class 1 (max. 30 bar)


Function & Application: An LPG gas shut-off valve is a safety requirement and serves to shut off the supply of liquid LPG and is placed before the LPG evaporator (end of LPG pipe coming from the LPG tank). This type is suitable for indirect and direct mounting on the inlet of an LPG evaporator. Direct mounting is only possible with an additional coupling piece.

Also widely used on the LPG system Eurogas Omegas and Landi Renzo Omegas.


NB! This type of LPG valve is suitable for 6mm LPG pipe. For cars with high power and 8mm LPG pipe, use a gas valve with a M12x1 8mm inlet.


TIP! Replace the wet gas filter (Integrated filter) at least every 60,000 km to prevent it from becoming clogged and from polluting the gas valve.


TIP! Provide the parts with a protective coating such as a transparent tectile, for example, so that they are well protected against water and dirt from the outside.
