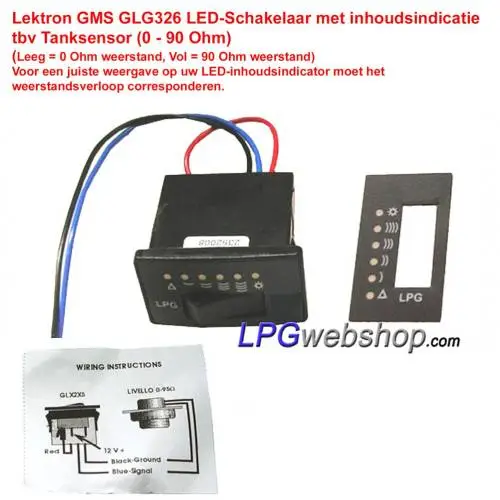

LPG LED-Switch GMS GLX2X5 GLG326 - excl. tank sensor

LPG LED-Switch GMS GLX2X5 GLG326 - excl. tank sensor

LPG GMS 3-position switch with Tank level LED indication without tank sensor (Empty = 0 Ohm / Full = 90 Ohm)

This allows you to check the tank contents from the cockpit or another place in the car and also operate the gas valves / electric tank tap.

Excluding tank sensor: Combine this switch with a tank sensor with resistance gradient 0-90 Ohm and suitable for the type of tank or gas bottle (4-hole / MultiValve)

Power the switch from a fused 12V source.

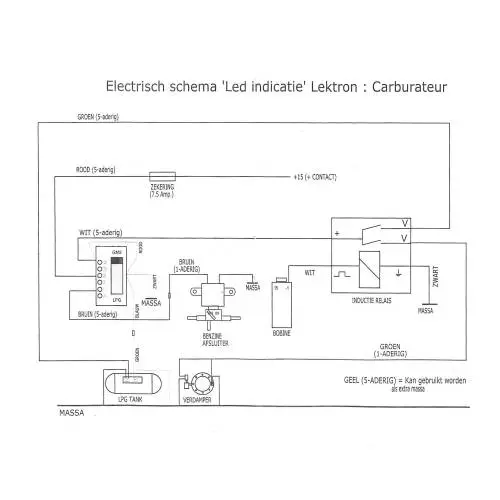

For a Classic LPG system (car with carburetor)

This product must be combined with a safety relay (Safety Switch) for automatically closing the gas valves when the engine shuts down. (Safety requirement)

The switch has 3 positions:

1: Petrol mode; the fuel shut-off valve is energized in this position, providing fuel supply to the carburetors. Gas valve is closed, so no gas supply.

2: Intermediate position: The petrol and gas valves are both closed: At this moment you are emptying the float chambers of your petrol carburetors.

3: LPG mode: As soon as the carburettors are empty, turn on the gas. Gas valves open and the car continues on gas.

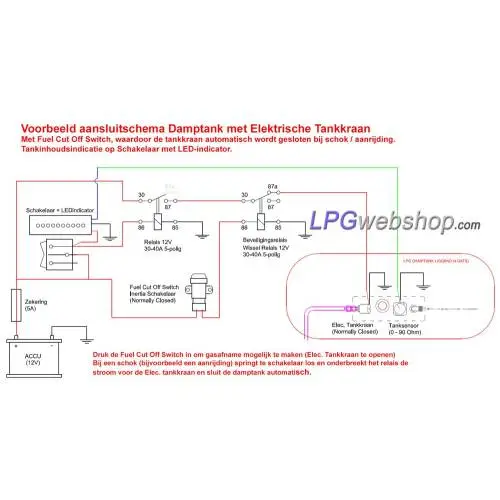

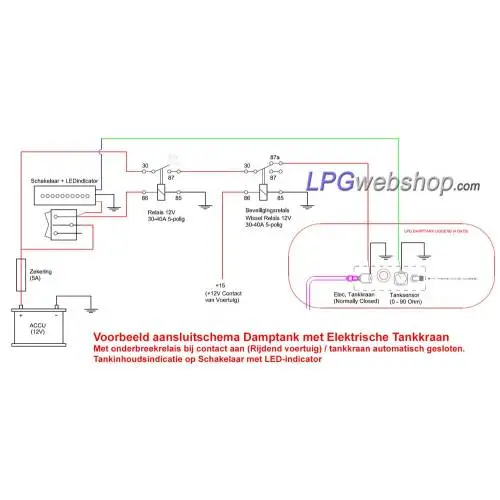

For an LPG vapor tank system

Can be used for an LPG vapor tank if you want to operate an electric tank tap / gas valve and also want to be able to see the tank contents on the switch.
