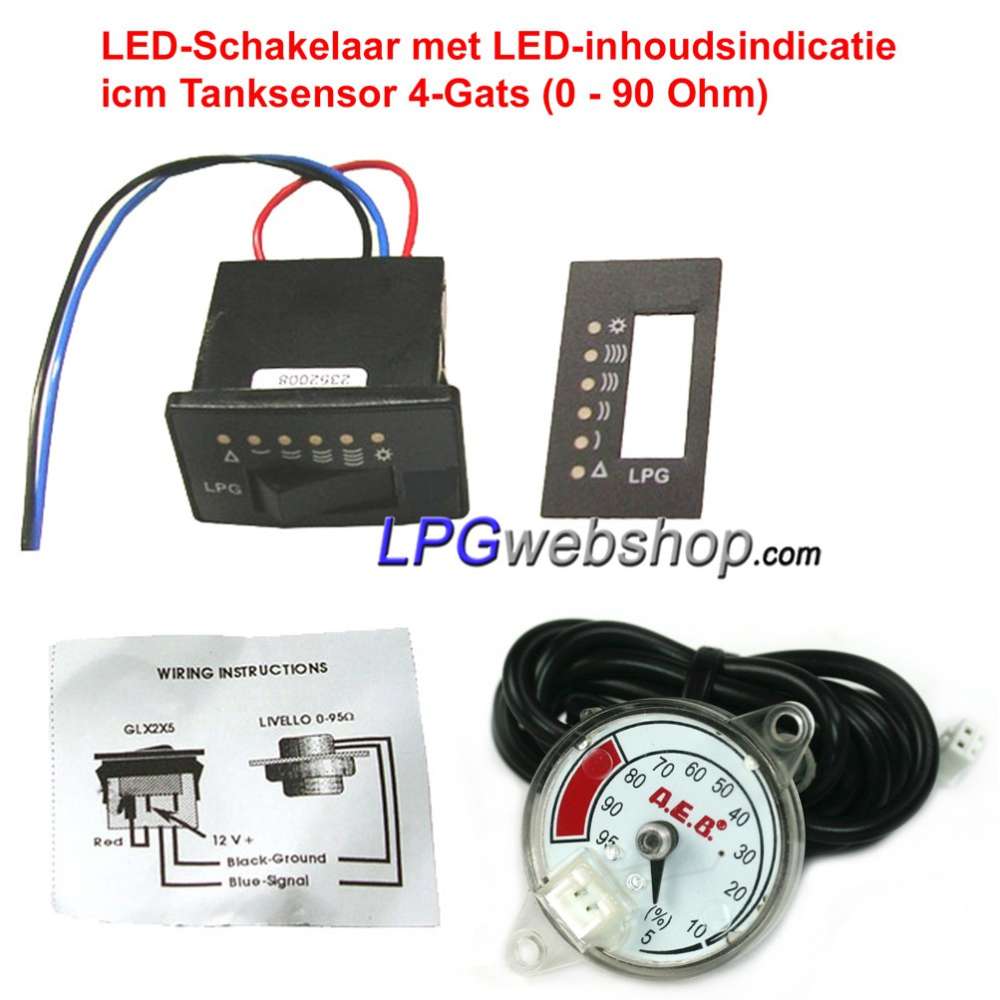

LPG GMS 3-position switch with Tank level LED indication with tank sensor for a 4-hole LPG tank (Empty = 0 Ohm / Full = 90 Ohm) (AEB820 / Schrafima Type L7)

This allows you to check the tank contents from the cockpit or another place in the car and also operate the gas valves / electric tank tap.

Power the switch from a fused 12V source.

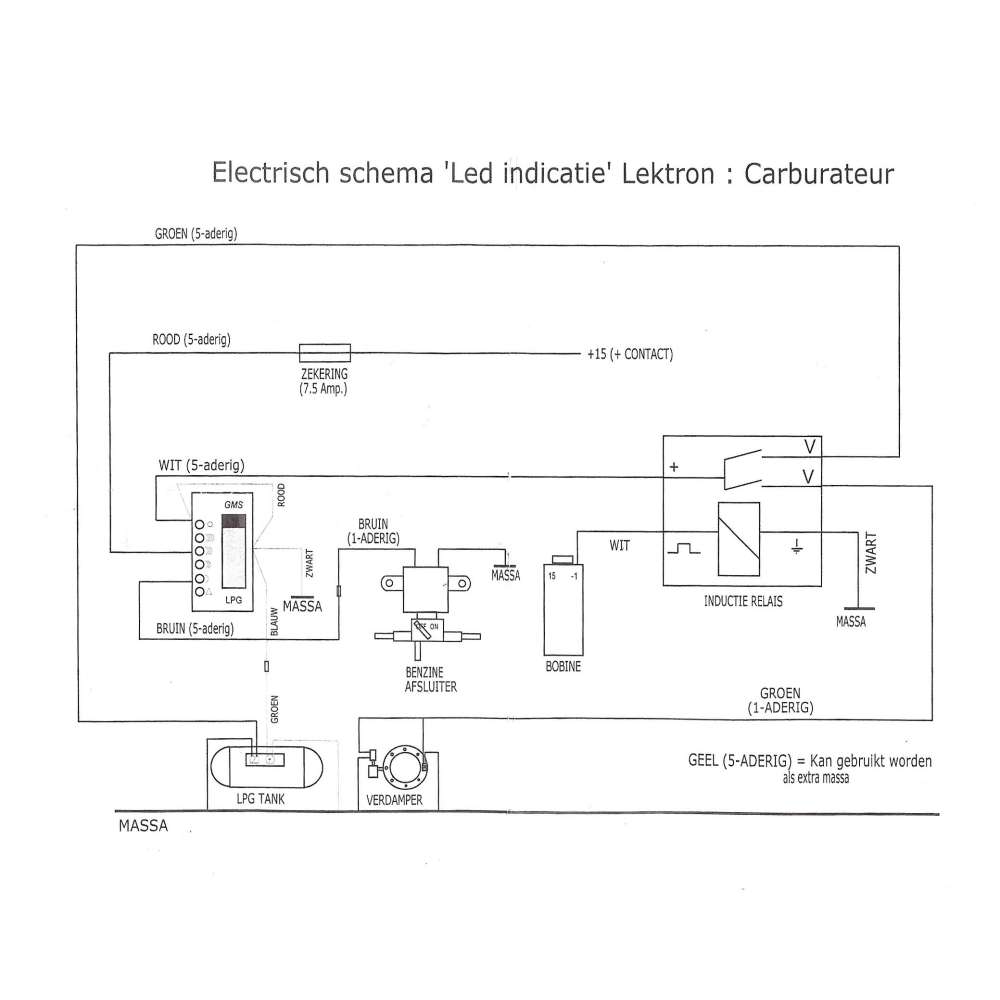

For a Classic LPG system (car with carburetor)

This product must be combined with a safety relay (Safety Switch) for automatically closing the gas valves when the engine shuts down. (Safety requirement)

The switch has 3 positions:

1: Petrol mode; the fuel shut-off valve is energized in this position, providing fuel supply to the carburetors. Gas valve is closed, so no gas supply.

2: Intermediate position: The petrol and gas valves are both closed: At this moment you are emptying the float chambers of your petrol carburetors.

3: LPG mode: As soon as the carburettors are empty, turn on the gas. Gas valves open and the car continues on gas.

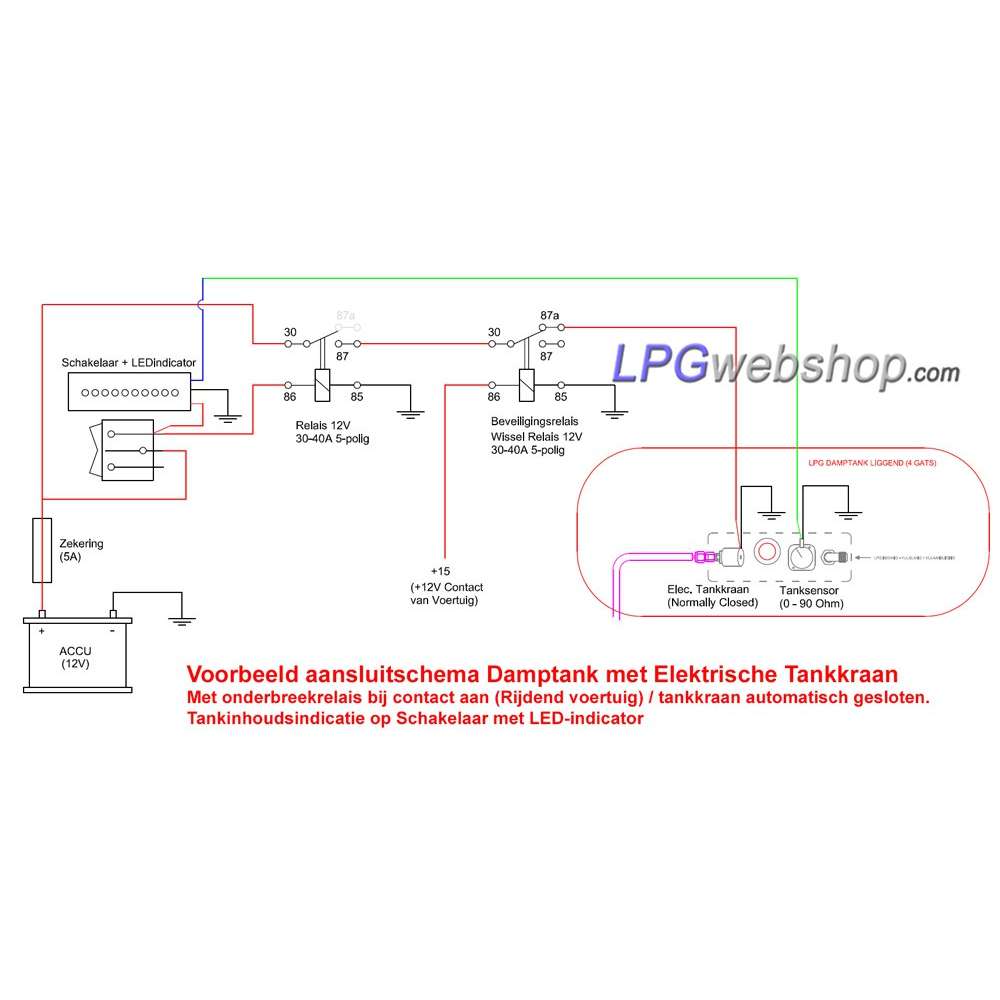

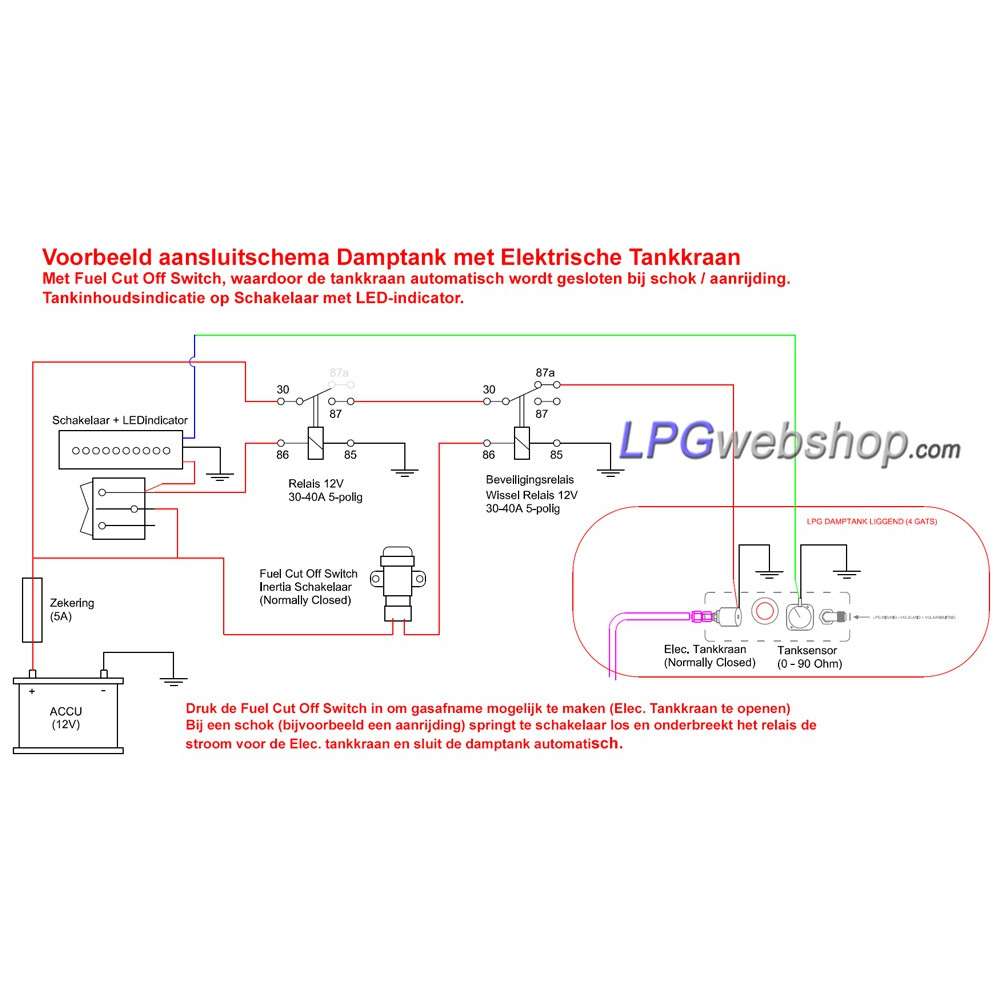

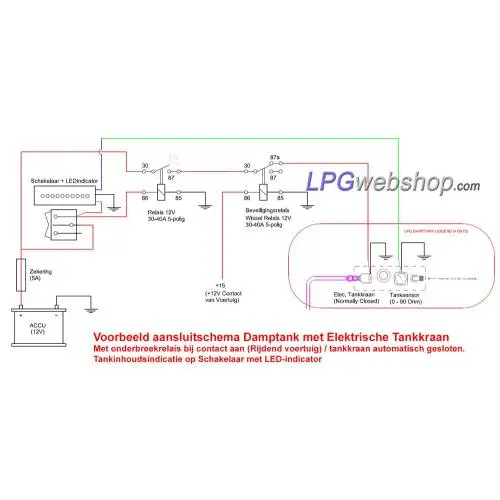

For an LPG vapor tank system
Can be used for a 4-hole LPG vapor tank if you want to operate an electric tank tap / gas valve and also want to be able to see the tank contents on the switch.

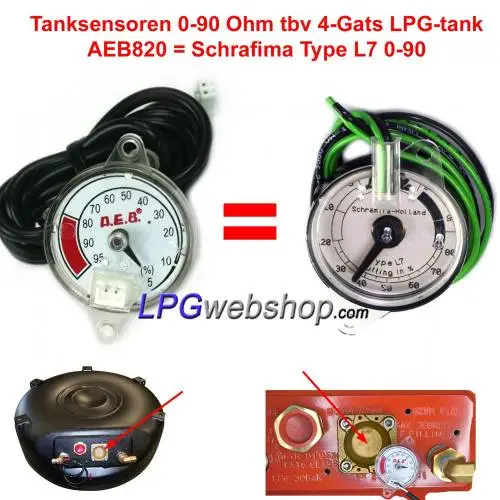

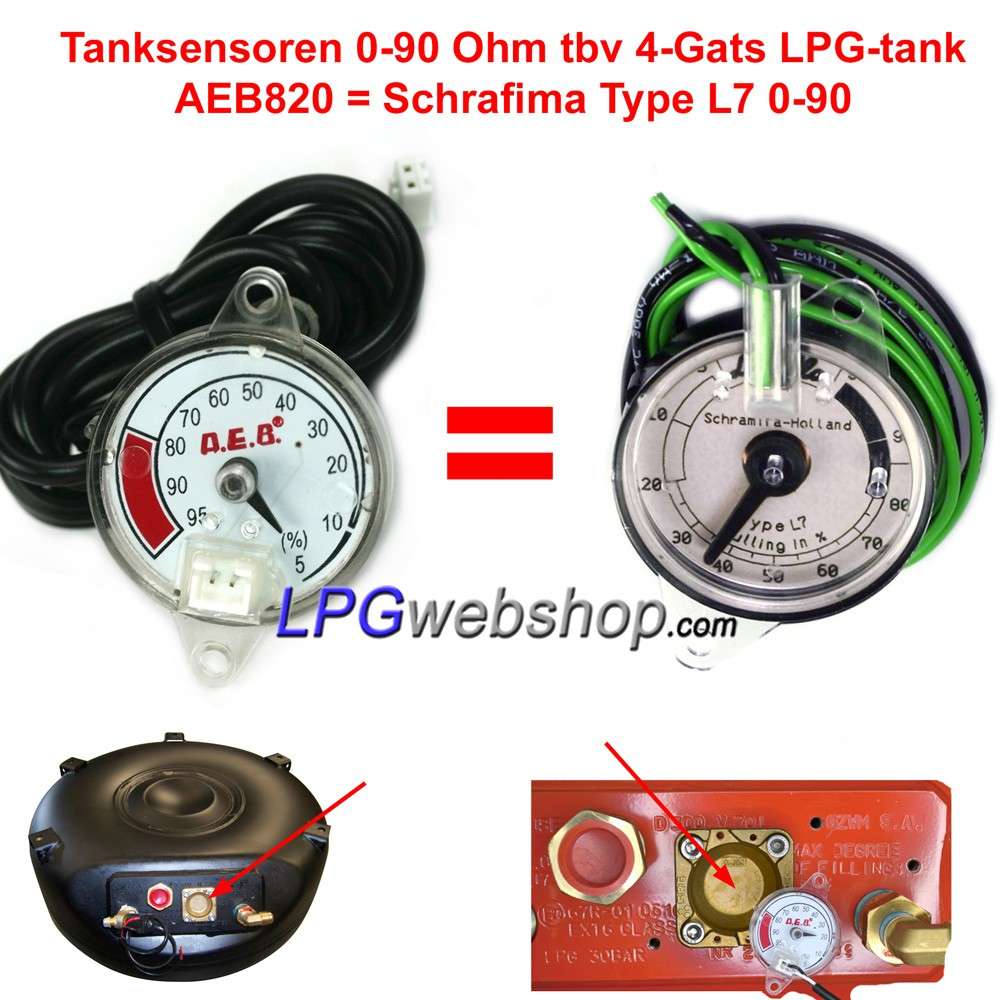

Tank sensor is suitable for:
- Ring tank 4 hole version
- Cylinder tank 4 hole version
- Vapor tank 4 holes
(Not for LPG tank with Multivalve)
