Tank Fixation Ring Set Ø230mm for Cylindrical LPG Tanks (2x Ring with Insulation)
€33.20 tax incl.
Type: 2x Steel mounting ring for LPG Camper Tank mountingDimensions: Width: 40 mm, Diameter: 23 cm, Thickness: 3 mm Product Content:2x Mounting...
Tank Fixation Ring Set Ø320mm for Cylindrical LPG Tanks (2x Ring with Insulation)
Tank Fixation Ring Set Ø320mm for Cylindrical LPG Tanks (2x Ring with Insulation)

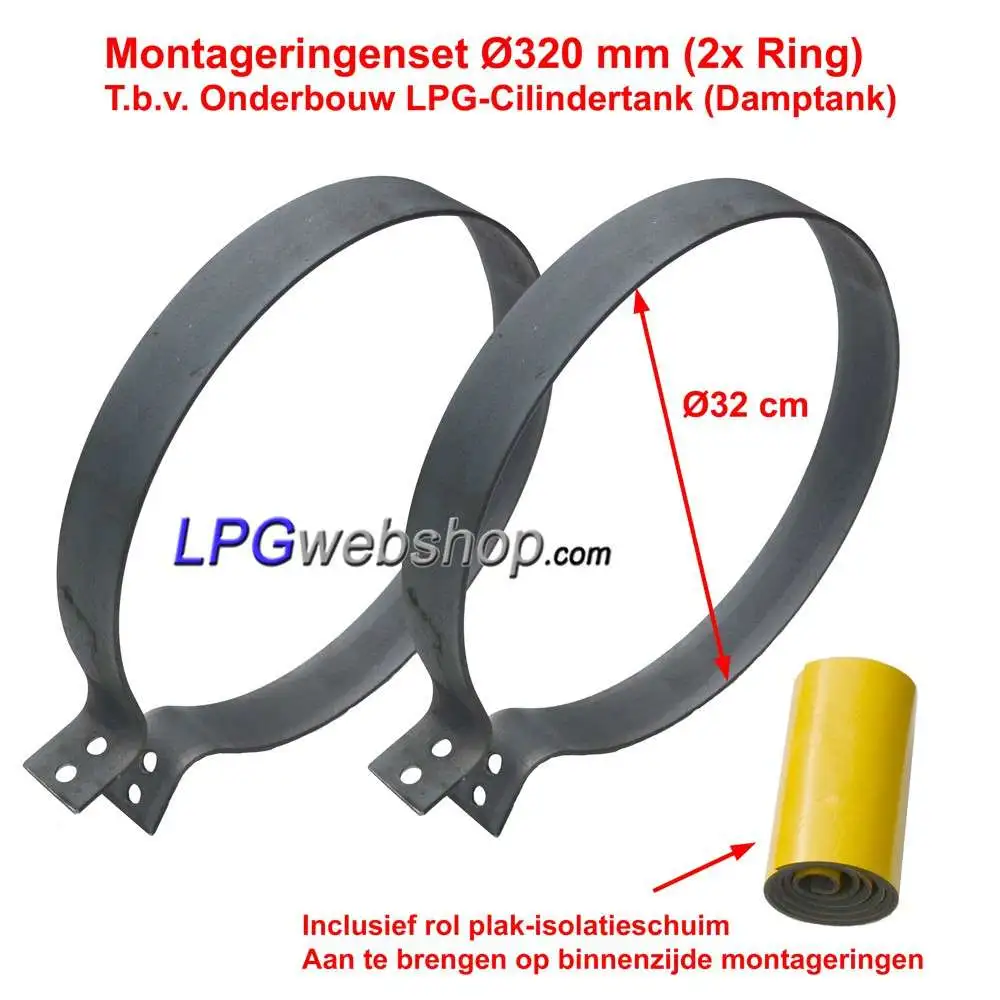

Type: 2x Steel mounting ring for LPG Camper Tank mounting
Dimensions: Width: 40 mm, Diameter: 32 cm, Thickness: 3 mm
Product Content:
2x Mounting ring diameter 32 cm
1x Roll of adhesive insulation

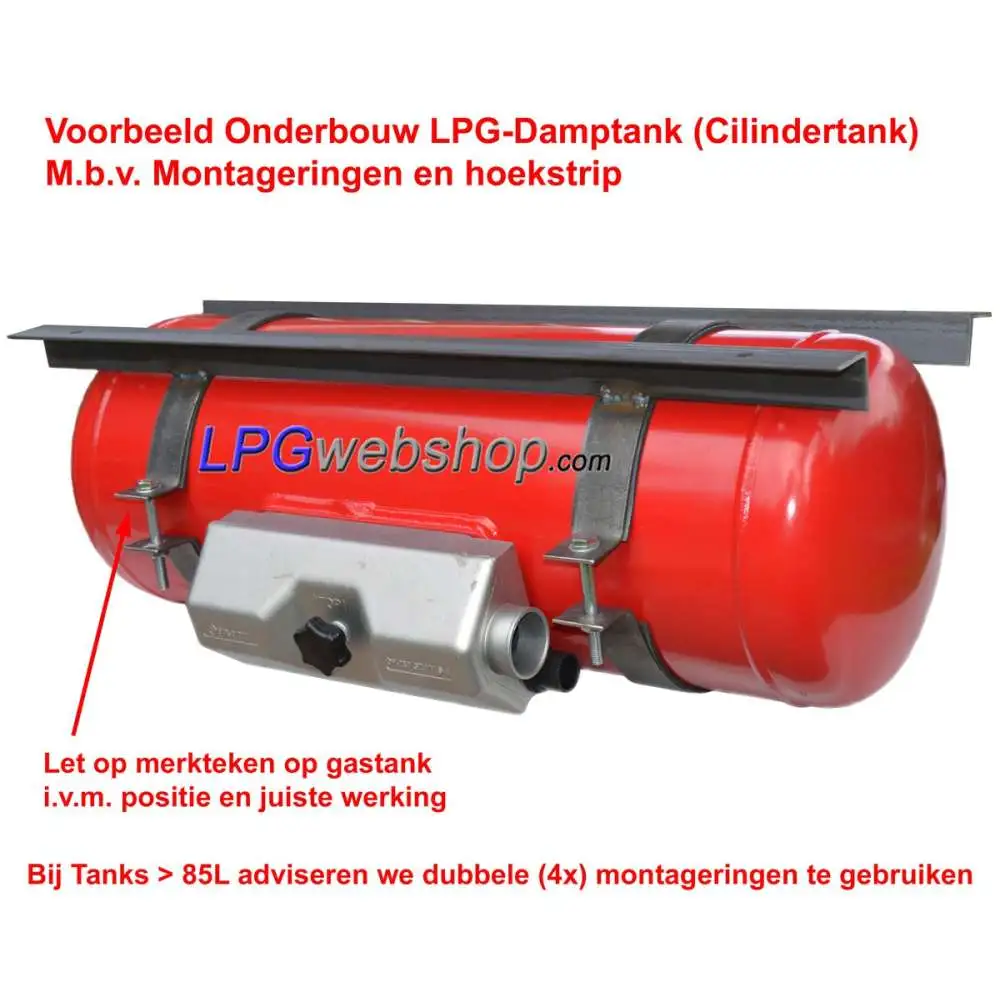

Connect the mounting ring with, for example, angled metal strip (NOT SUPPLIED) by means of a good welded connection so that it can then be attached under the vehicle.
381002050
Type: 2x Steel mounting ring for LPG Camper Tank mounting
Dimensions: Width: 40 mm, Diameter: 32 cm, Thickness: 3 mm
Product Content:
2x Mounting ring diameter 32 cm
1x Roll of adhesive insulation
Connect the mounting ring with, for example, angled metal strip (NOT SUPPLIED) by means of a good welded connection so that it can then be attached under the vehicle.
€33.20 tax incl.
Foreign companies with a valid VAT number shop VAT-free here! READ HOW.
Safe & TrustedWebshop Trustmark Certified Member & Secured by SSL.
TÜV ISO 9001Certified by TÜV Nord Netherlands
Delivery policySafe and Secure Shipping with DPD or DHL
Refund policy14-Day Reflection Period & Return Policy
Tank Fixation Ring Kit Ø320mm for Cylindrical LPG Tank / LPG Camper Tank (2x Ring incl. bolts & Nuts and Iso. Foam)
Type: 2x Steel mounting ring for LPG Cylindrical Camper tank mounting
Dimensions: Width: 40 mm, Diameter: 32 cm, Thickness: 3 mm

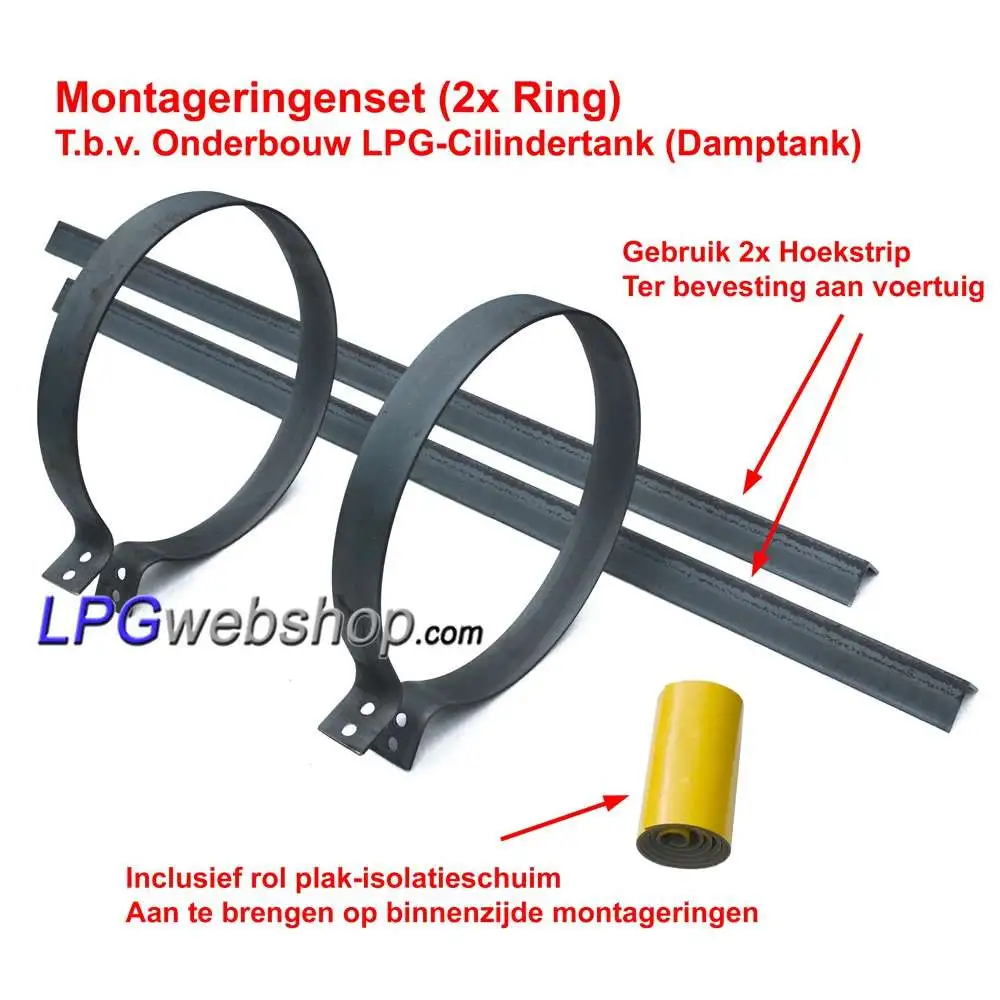

(Angled metal strips (NOT SUPPLIED)

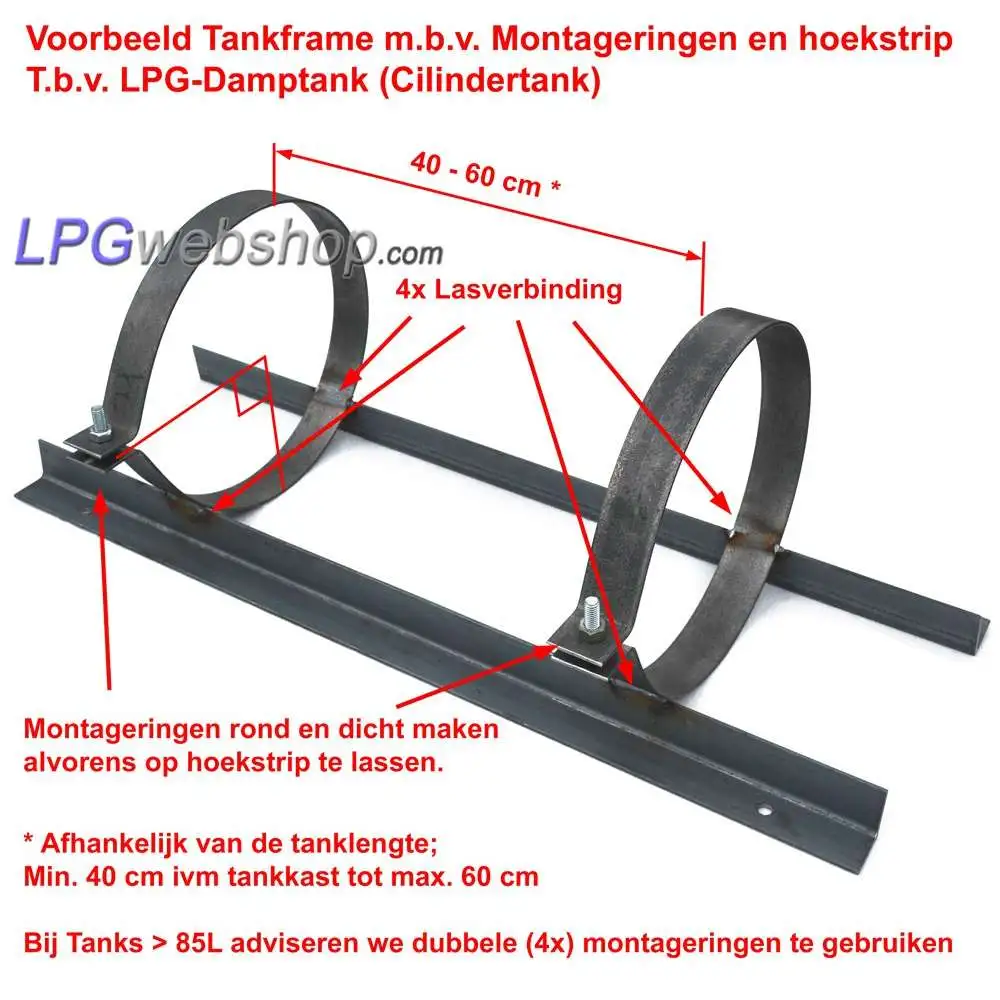

Assemble the mounting rings in combination with corner strip (or other construction material) into a sturdy and well-fitting tank frame for your vapor tank and vehicle. When installing (welding) the mounting rings onto the corner strip, make sure that the rings are in the closed position (as they hold the gas tank.) Otherwise, the corner strip may not be at the correct angle to the rings.
Pay attention to the position and therefore the marking on the gas tank. And also pay close attention to the position of the flanges of the rings in relation to the tank fittings (tank cabinet), so that the incoming and outgoing pipes are not blocked. Use a sufficient number of bolts of the correct quality for a sufficiently strong construction. (see INSTALLATION REQUIREMENTS on the appendices tab on this page)
After the tank frame is completely prepared and to size, apply a coating and then apply the adhesive insulation.
The gas tank must not make metallic contact with the tank frame. Therefore, use the supplied adhesive insulation and apply it to the inside of the mounting rings.

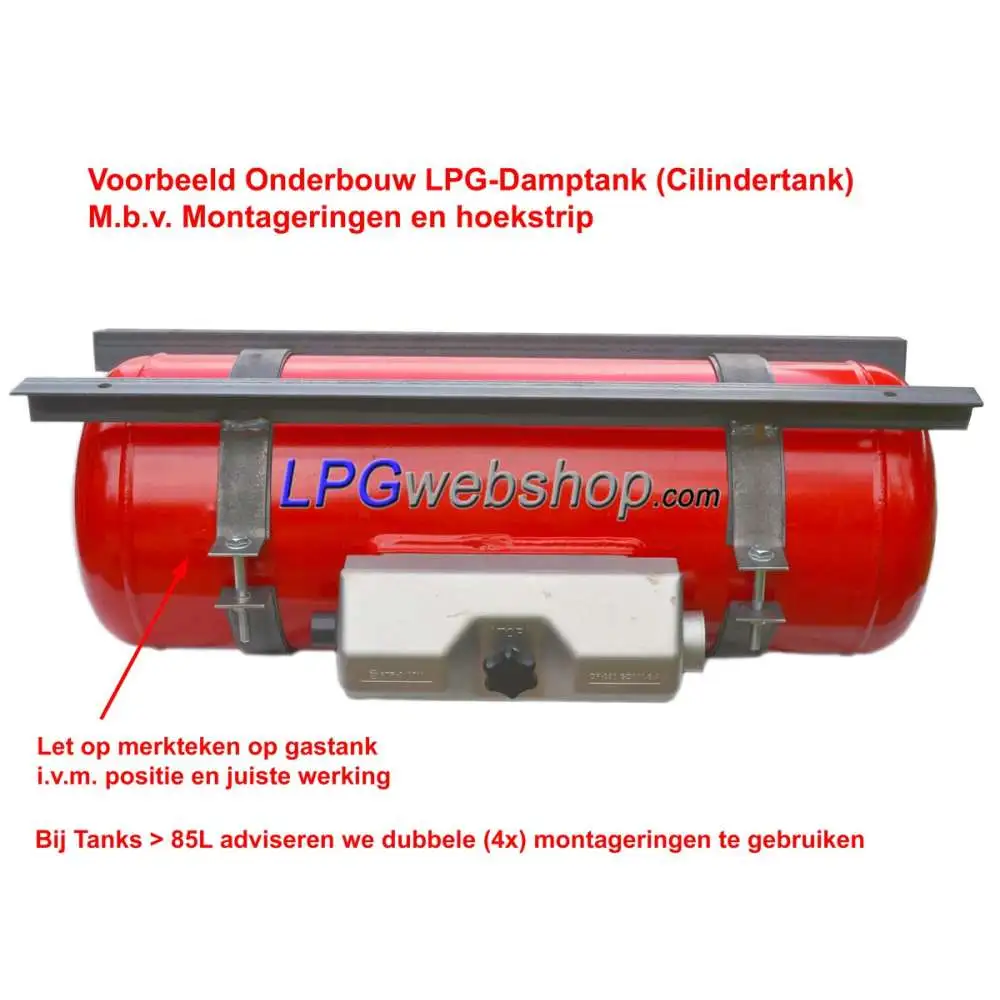

Position the gas tank on the prepared tank frame. (To do this, bend the rings slightly open.) Pay attention to the mark (cross with arrow) on the gas tank for correct positioning for proper functioning of the gas tank. The mark indicates the top and the horizontal center plane.
No weakenings may be made in the mounting rings, for example by making a hole.
Use and respect the National INSTALLATION REQUIREMENTS / EN 1949 (G607) GUIDELINES for a correct installation. (see the attachments tab on this page)
Coating:
The mounting rings (and corner strip) are untreated. We recommend that they be provided with a protective coating after assembly and adjustments, such as the installation of additional mounting holes and mounting brackets. Then apply the adhesive insulation.
Provide the entire tank installation with a protective coating as soon as everything is properly fixed. This is particularly important in the case of substructure. This extends the life of the tank and structure. Preferably repeat this annually.
Have the installation of the gas tank and the assembly of the tank frame done by an expert person or specialist company.
Have the entire installation inspected by a competent authority.
381002050
Data sheet
- Attention!
- It is mandatory to have this product installed by an expert. Our company disclaims all liability in the event of an accident.
- Recommendation:
- If the tank is fitted underneath the car, apply an undercoating to protect the tank and have a longer lifespan.
- Downloads:
- Manuals and Documentation - See the tab Attachments on this page.
- Related Products:
- See bottom of this page
- Shipping Costs:
- Is calculated in the Checkout and is visible there. (Depends on total weight, destination and discounts.)
- Application:
- Suitable for internal and external (under the car) application
